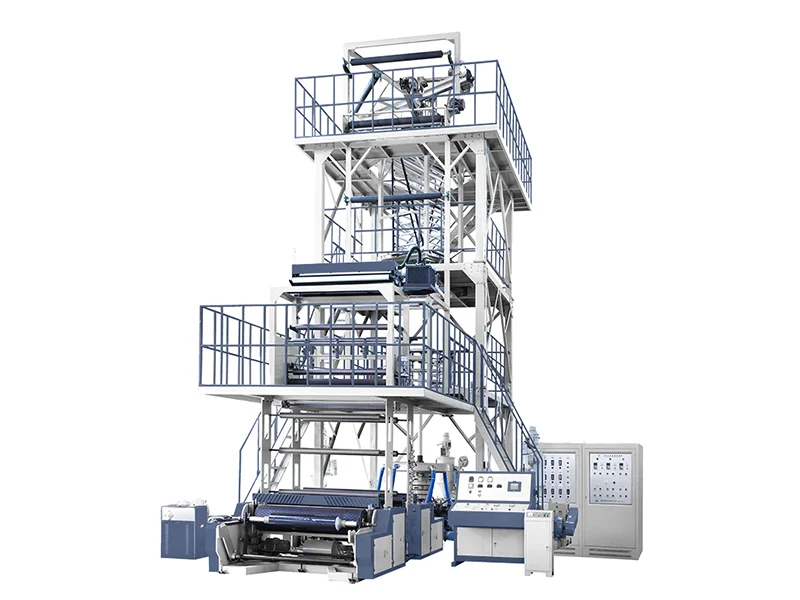

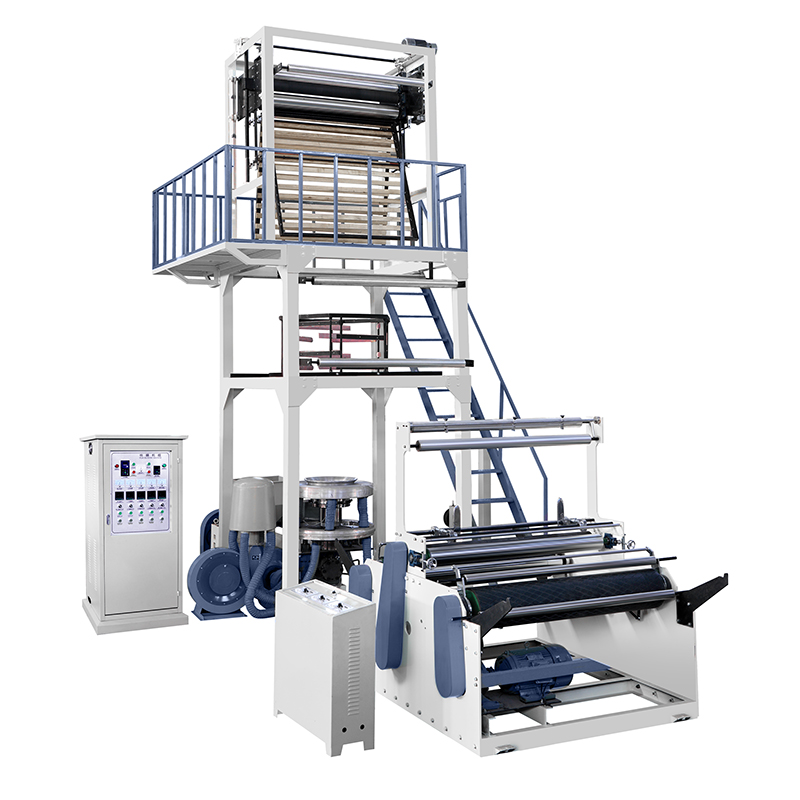

SNW-FM Series HDPE/LDPE Film Blowing Machine
Characteristics

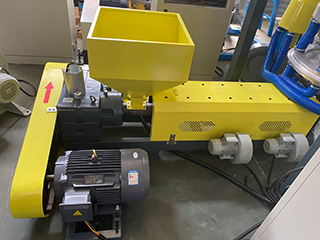

* Universal Dual-Purpose Screw & Barrel
Equipped with a specially optimized bimetallic screw designed to handle the distinct melting points and shearing behaviors of both HDPE and LDPE/LLDPE, ensuring excellent plasticization.

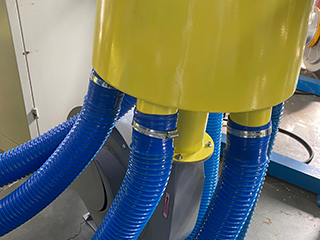

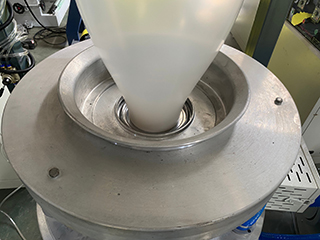

* Flexible Convertible Die Head & Air Ring
Features an adaptable die system and adjustable dual-lip air ring that allow quick adjustments to air volume and pressure, maintaining optimal bubble stability for various material blends.
* Robust & Vibration-Free Operation
Built with a heavy-duty industrial frame and high-precision gearboxes, ensuring continuous, stable running and consistent film gauge control even at high production speeds.

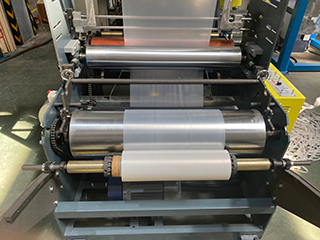

* Intelligent Tension & Rewinding System
Utilizes advanced surface friction winding or automatic tension control to ensure clean, tight, and uniform film rolls, ready for seamless downstream printing or bag conversion.
Use
* Diversified Retail & Shopping Bags
Perfect for producing crisp HDPE supermarket t-shirt bags, as well as smooth, glossy LDPE boutique carrier bags and loop-handle shopping sacks.
* General Purpose Packaging & Liners
Widely used to manufacture food-grade fresh-keeping bags, deli counter rolls, agricultural mulch films, and industrial protective liners.
* Shrink Films & Lamination Base Films
Ideal for producing high-clarity LDPE colation shrink wraps, heavy-duty shipping sacks, and base substrates for multi-layer lamination processes.
* Express Mailers & Garbage Bags
Suitable for manufacturing durable e-commerce shipping bags, poly mailers, and various daily-use drawstring or star-sealed trash liners.
Main Technical Parameters
SNW-FM600MM | SNW-FM800MM | SNW-FM1000MM | SNW-FM1200MM | |
薄膜宽度Film Width | 100-600mm | 200-800mm | 300-1000mm | 400-1200mm |
薄膜厚度Film Thickness | HDPE:0.005-0.045mm LDPE:0.01-0.1mm | HDPE:0.005-0.045mm LDPE:0.01-0.1mm | HDPE:0.005-0.045mm LDPE:0.01-0.1mm | HDPE:0.005-0.045mm LDPE:0.01-0.1mm |
最大产量Max Output | 35-40KG/H | 40-45KG/H | 55-60KG/H | 65-70KG/H |
螺杆直径Screw Dia | Φ50mm(38CrMOALA) | Φ55mm(38CrMOALA) | Φ60mm(38CrMOALA) | Φ65mm(38CrMOALA) |
螺杆长径比Screw Length Ratio | 30:1 | 30:1 | 30:1 | 30:1 |
螺杆转速Screw Speed | 10-90rpm | 10-90rpm | 10-90rpm | 10-90rpm |
冷却风机Cooling Fan | 120W × 1 | 250W × 2 | 370W × 2 | 370W × 2 |
主电机Main Motor | 11KW with inverter | 15KW with inverter | 18.5KW with inverter | 22KW with inverter |
齿轮箱Gear Box | 133 | 146 | 173 | 173 |
鼓风机Blower | 1.1KW | 1.5KW | 2.2KW | 2.2KW |
模头Die Head | HDΦ50mm & LDΦ80mm | HDΦ80mm & LDΦ150mm | HDΦ100mm & LDΦ220mm | HDΦ120mm & LDΦ250mm |
风环 Air Ring | Φ620 | Φ780 | Φ780 | Φ780 |
电压Machine Voltage | 380V 50HZ/220V 60HZ (can be customizable) | 380V 50HZ/220V 60HZ (can be customizable) | 380V 50HZ/220V 60HZ (can be customizable) | 380V 50HZ/220V 60HZ (can be customizable) |
总功率Total Power | 30KW | 35KW | 39KW | 48KW |
机器重量Machine weight | 1.5T | 2.0T | 2.5T | 3.0T |
机器尺寸Machine Dimension | L4.5*W2.0*H3.9m | L4.5*W2.2*H4.4m | L5.0*W2.5*H4.8mm | L5.0*W2.8*H4.8m |
SS-FM1500MM | SS-FM2000MM | SS-FM2500MM | SS-FM3000MM | |
薄膜宽度Film Width | 500-1500mm | 1000-2000mm | 1500-2500mm | 1500-3000mm |
薄膜厚度Film Thickness | HDPE:0.005-0.045mm LDPE:0.01-0.1mm | LDPE:0.01-0.1mm | LDPE:0.01-0.1mm | LDPE:0.01-0.1mm |
最大产量Max Output | 90-110KG/H | 150KG/H | 260KG/H | 300KG/H |
螺杆直径Screw Dia | Φ80mm(38CrMOALA) | Φ90mm(38CrMOALA) | Φ110mm(38CrMOALA) | Φ120mm(38CrMOALA) |
螺杆长径比Screw Length Ratio | 30:1 | 30:1 | 30:1 | 30:1 |
螺杆转速Screw Speed | 10-90rpm | 10-90rpm | 10-90rpm | 10-90rpm |
冷却风机Cooling Fan | 370W × 3 | 550W × 3 | 550W × 4 | 550W × 5 |
主电机Main motor | 37KW with inverter | 55KW with inverter | 75KW with inverter | 22KW with inverter |
齿轮箱Gear Box | 200 | 225 | 280 | 315 |
鼓风机Blower | 3.0KW | 7.5KW | 11KW | 15KW |
模头Die Head | HDΦ150mm & LDΦ350mm | LDΦ500mm | LDΦ600mm | LDΦ800mm |
风环 Air Ring | Φ1000 | Φ1200 | Φ1400 | Φ1600 |
电压Machine Voltage | 380V 50HZ/220V 60HZ (can be customizable) | 380V 50HZ/220V 60HZ (can be customizable) | 380V 50HZ/220V 60HZ (can be customizable) | 380V 50HZ/220V 60HZ (can be customizable) |
总功率Total Power | 67KW | 115KW | 146KW | 170KW |
机器重量Machine weight | 4.0T | 10T | 14T | 20T |
机器尺寸Machine Dimension | L6.8*W3.8*H6.5m | L7.5*W4.0*H7.5m | L7.5*W4.8*H9.5m | L8.5*W6.5*H11.0m |
Product Video
Product Showcase
Related Products
-

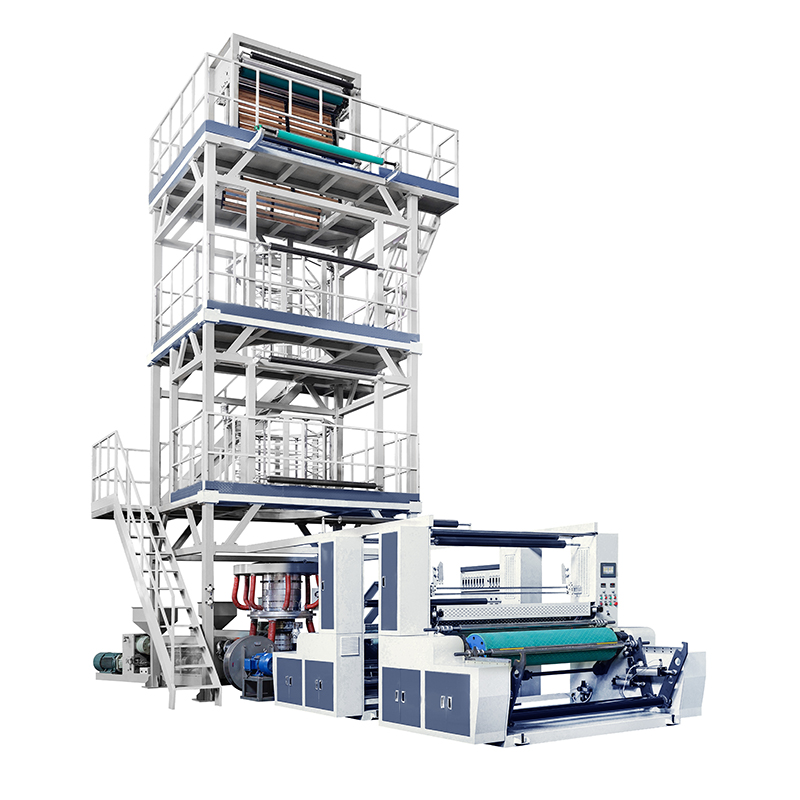

High-Speed 3-Layer Blown Film Line
Allows flexible material blending (such as HDPE, LDPE, LLDPE, and mLLDPE) to significantly enhance film strength, puncture resistance, and barrier properties while reducing raw material costs.
Read more -

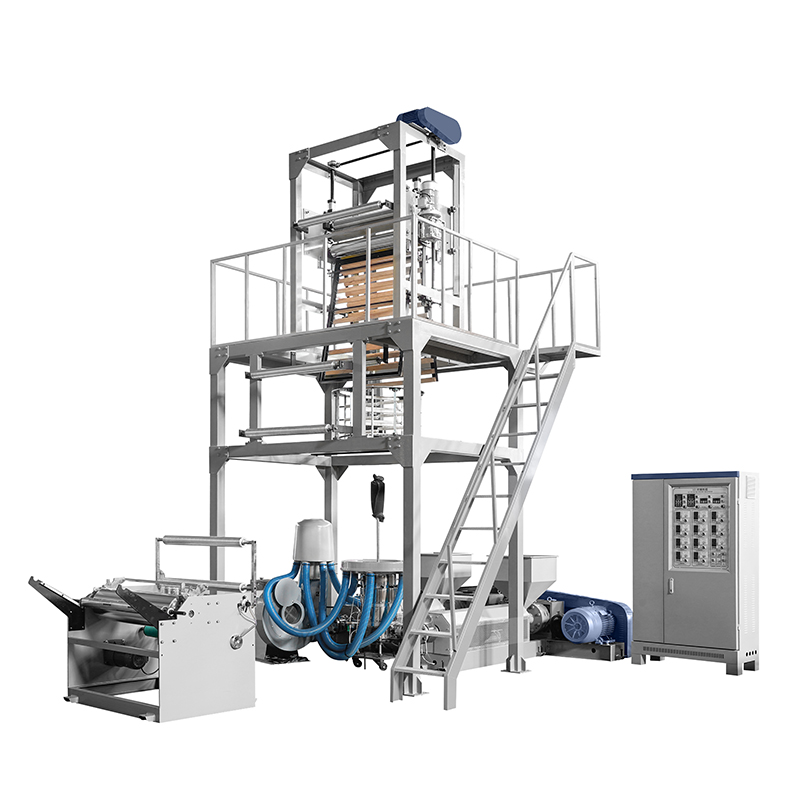

ABA Series High Speed Three Layer Co-extrusion HDPE Film Blowing Machine
Utilizes a 2-extruder system to produce a 3-layer film (A-B-A). Enables up to 50%-70% recycled material or calcium carbonate (CaCO3) usage in the middle B-layer to drastically reduce raw material costs.
-

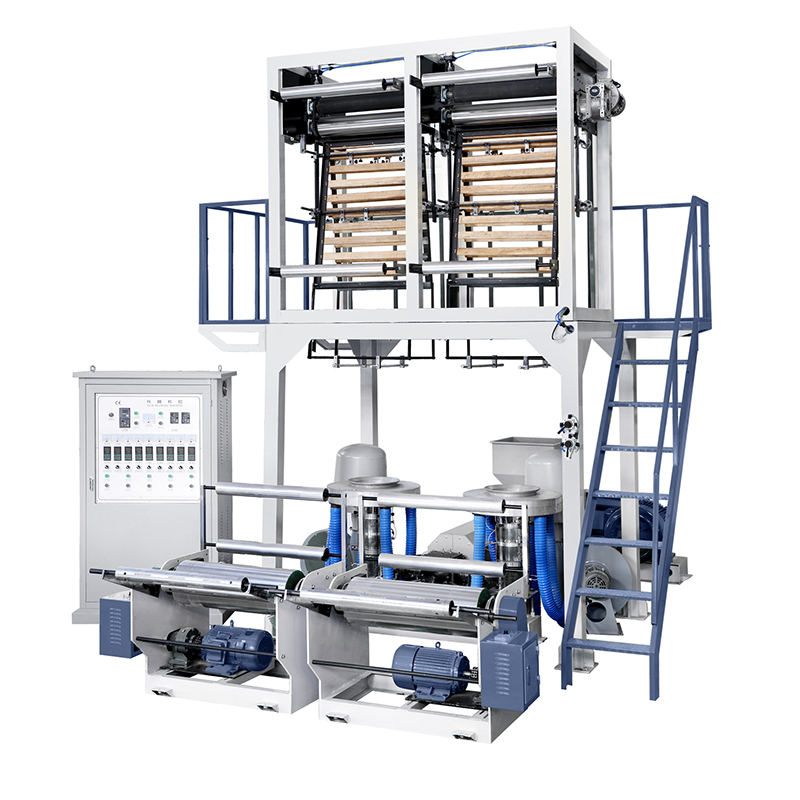

Mono Layer Double Die Film Blowing Machine
Driven by one powerful bimetallic screw and barrel feeding into a precision split die system, allowing you to double your film production capacity without buying a second machine.
-

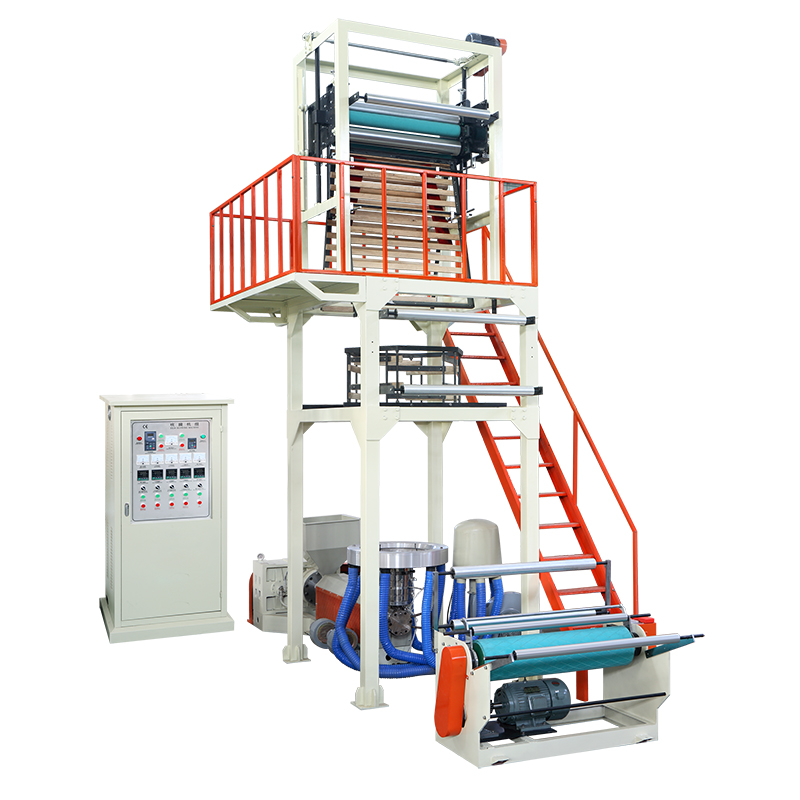

High-Speed Single-Layer HDPE Blown Film Machine
