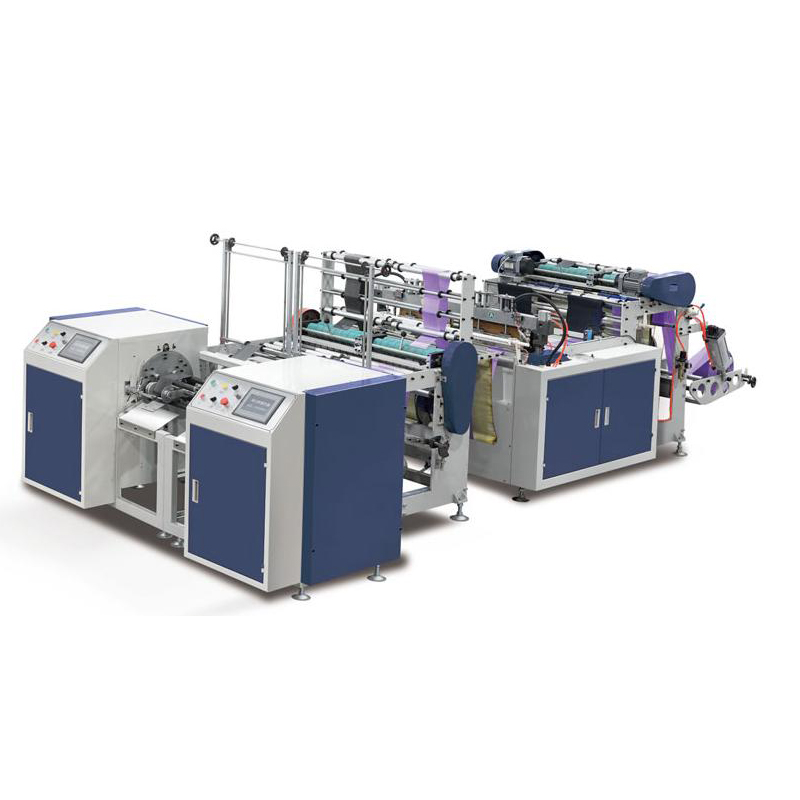

SNW-WX-400*2 High Speed Double Lines Star Sealing And Flat Bag Making Machine
Performance and Characteristics
1. Computer automatic control, automatic counting and set counting alarm, high efficiency, saving manpower and time;
2. From film rolling to finished bag, it is fully automatic and one-time;
3. Domestic servo motor has fixed length, photoelectric tracking, accurate and stable, and photoelectric control is adopted for feeding;
4. Adopt hot cutting device and intelligent temperature control system to make the bag mouth sealed firmly and smoothly;
5. The main engine adopts frequency converter to control speed regulation;
6. Rewinding is controlled by PLC;
7. Discharging is controlled by frequency converter;
Main Technical Parameters
项目Items | 参数Parameter |
制袋宽度Bag making width | 80-300mm |
制袋长度Bag making length | 100-1200mm |
制袋速度Bag making speed | 60-205只/分钟*2 |
最高线速度Max line speed of film | 115米/分钟m/min |
制袋厚度Bag making thickness | 0.005-0.02mm |
制袋形式Bag making methods | 连卷八折平口袋Rolling star sealing flat bag |
Product Video

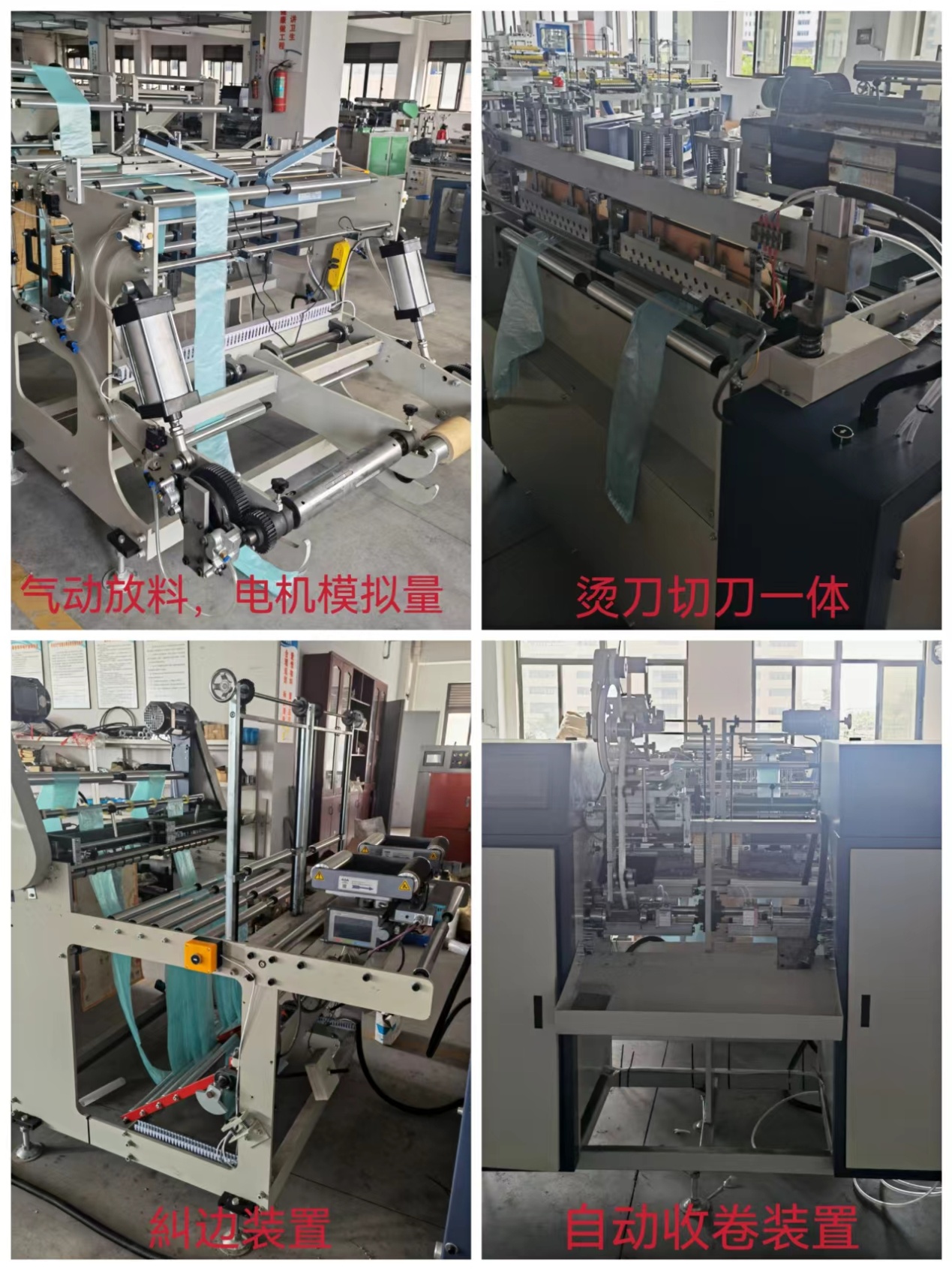

Product Showcase
Related Products
-

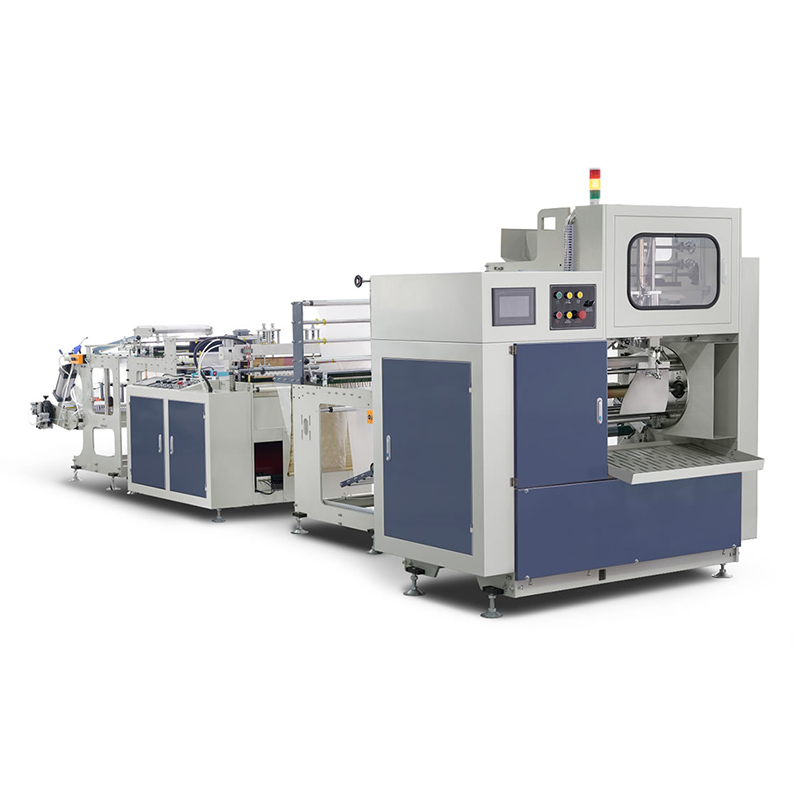

SNW 450×2 Automatic winder High Speed Roll Bag Making Machine ( roll bag with core)
Sinowin’s Dual-Lane Fully Automatic High-Speed Rolling Bag Making Machine with Core is a top-tier, heavy-duty industrial solution designed for the continuous, non-stop production of core-rolled bags. Utilizing an advanced dual-lane tracking system, this high-performance machine processes two film rolls simultaneously, delivering an exceptional production output with precise heat-sealing and hot-cutting technology. Fully integrated with an intelligent automatic core-feeding, rewinding, and roll-changing mechanism, it completely eliminates manual rewinding labor, transforming raw film into perfect, store-ready rolled bags on paper or plastic cores with unparalleled efficiency.
Read more -

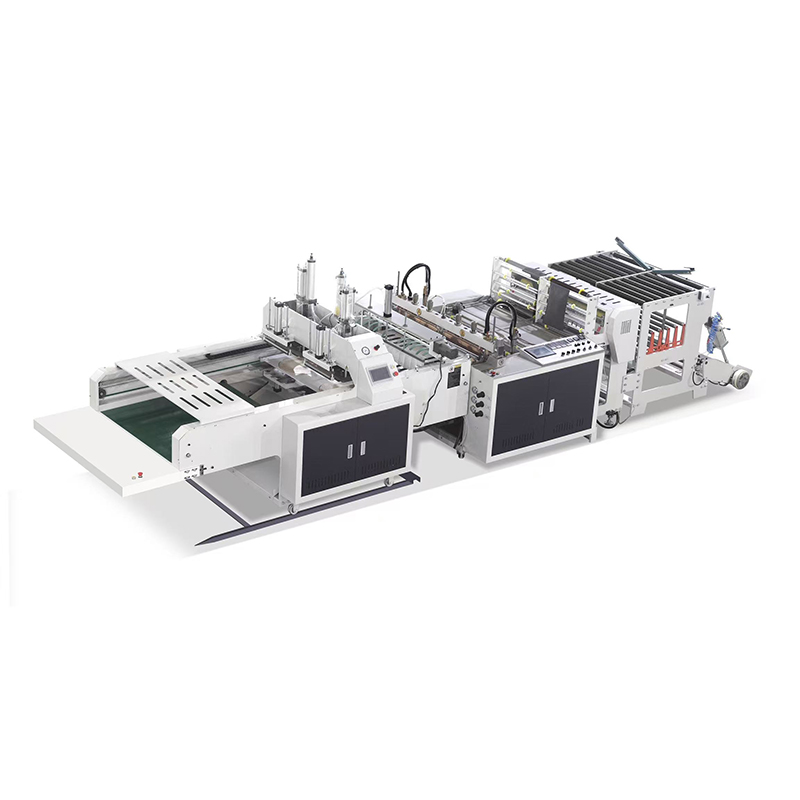

SNW-GS Automatic Ultra High Speed T-Shirt Bag Cutting Machine (TWO LINES)
Sinowin’s Dual-Lane High-Speed T-Shirt Bag Making Machine is a heavy-duty, ultra-efficient production line engineered for massive-volume manufacturing requirements. Utilizing an advanced dual-track synchronization system, this high-performance machine processes two film rolls independently and simultaneously, reaching a blazing-fast production speed of up to 400 pieces per minute. Driven by high-end servo motors and a multi-axis PLC controller, it delivers flawless sealing integrity and extreme dimensional accuracy, making it the ultimate flagship solution for industrial flexible packaging plants looking to maximize output and ROI.
-

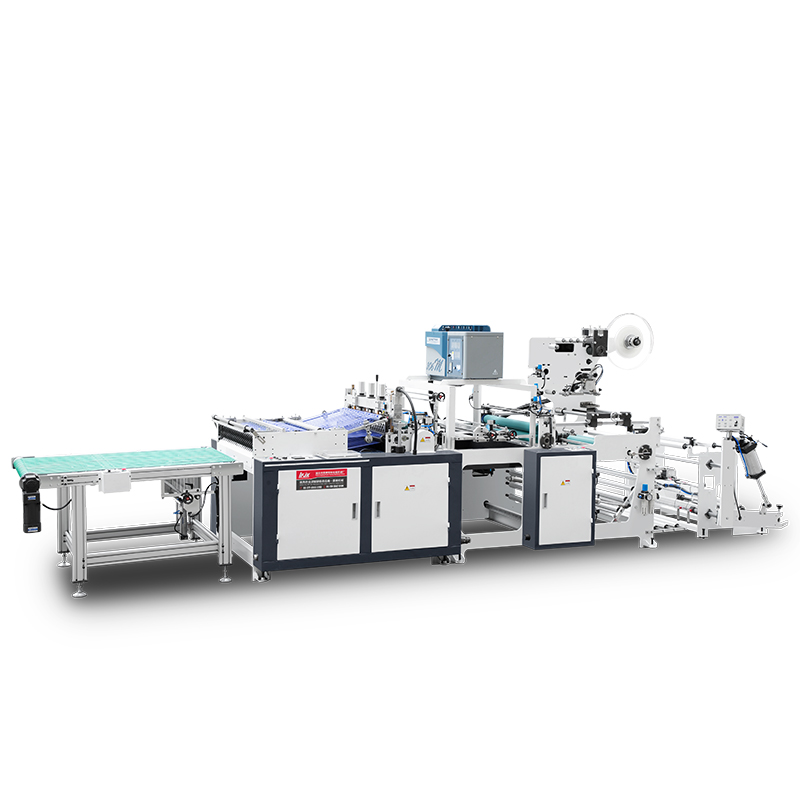

SNW-RQL series PP/OPP/PE Multi-Functional Side Sealing Bag Making Machine
Engineered for ultimate versatility and premium finish, Sinowin’s Multi-Functional Side Sealing Bag Making Machine Series is the definitive solution for high-speed production of specialized packaging. This high-performance line easily processes high-clarity materials including OPP, PP, PE, CPP, and lamination films. Featuring a modular design, it seamlessly integrates functions like bottom folding, pearlized film inserting, heading tape application, auto-adhesive strip pasting, and multi-shape hole punching into one streamlined process. It is the perfect investment for manufacturers aiming to capture the high-end apparel, stationery, and gift packaging markets.
-

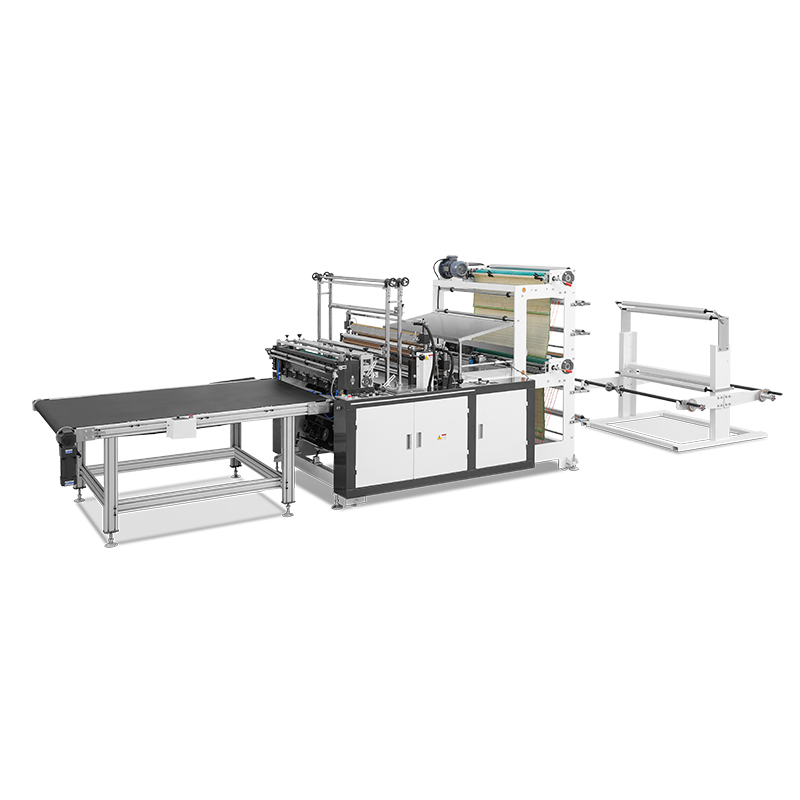

SNW-GFQ Series Single Line Heavy Bag Cutting Machine (non-stretching style)
